Mobilhorn
MobilHorn is a 12V 150W portable electronic siren designed especially for the requirements of the Civil Protection and Crisis Management authorities. In principle, it is a megaphone and a car siren with some modifications. It has full PA ability, large area coverage, integrated USB .mp3 player and wireless microphone for 30m. The main advantage of Mobilhorn is its flexibility. It is not just siren but small computer which can be even connected to ethernet computer network! It is fully flexible and custom-made, including language packages, control screen with buttons or new functions.

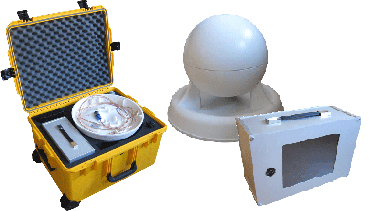

MobilHorn system consists of 2 basic modules - the control case with electronics and sphere speaker. Both modules are designed to be quickly deployed on any car or other vehicle available. System is connected to 12V car battery. Speaker is positioned on the car roof or any other flat surface. Sphere speaker is equipped with magnetic clamps allowing it to be quickly attached or detached to any metal surface.
Information leaflet
Control unit technical data
Sphere speaker technical data
MobilHorn is a 12V 150W portable electronic siren designed especially for the requirements of the Civil Protection and Crisis Management authorities. In principle, it is a megaphone and a car siren with some modifications. It has full PA ability, large area coverage, integrated USB .mp3 player and wireless microphone for 30m. The main advantage of Mobilhorn is its flexibility. It is not just siren but small computer which can be even connected to ethernet computer network! It is fully flexible and custom-made, including language packages, control screen with buttons or new functions.
MobilHorn system consists of 2 basic modules - the control case with electronics and sphere speaker. Both modules are designed to be quickly deployed on any car or other vehicle available. System is connected to 12V car battery. Speaker is positioned on the car roof or any other flat surface. Sphere speaker is equipped with magnetic clamps allowing it to be quickly attached or detached to any metal surface.
Information leaflet
| Comparison: | Mobilhorn | Standard car siren |
| Acoustic power: | 150W | 80-150W |
| Voice input: | Microphone, Wireless mic., AUX | Microphone only |
| Alarm messages: | Custom - USB flash memory (.mp3) | 3 standard tones |
| Field voice recording: | Voice recorder | N/A |
| Customization: | All possible | N/A |
| Installation: | Flexible - usable on any car | Fixed in car |
Control unit technical data
| Dimensions: | 298 x 188 x 136 mm |
| Weight: | 2kg |
| Power supply: | 12-14V DC / 15A |
| Frequency range: | 50Hz - 20kHz |
| Output power: | 150W / 4Ohm |
| Inputs: | Wireless microphone, link input |
| Memory capacity: | 16GB standard (10GB for data) |
| Number of alarms: | limited only by memory |
| Overall alarm length: | 60hours (720h compressed) |
| File types: | WAV, MP3, FLAC, OGG |
| Network interface: | RJ45, ethernet 100Mb/s |
| Display: | LCD touchscreen, 800x600 pix |
| Wireless microphone range: | 30m |
Sphere speaker technical data
| Dimensions: | 254 x 302mm |
| Magnetic stand diameter: | 378mm |
| Weight: | 7kg |
| Acoustic pressure: | 98 dBA / 30m |
| Impedance: | 11 Ohm |
